Product Description
"The MPC-50L 360 passive infrared (PIR) occupancy sensors turn lighting systems on and off based on occupancy and ambient light levels. The light level feature keeps lights from turning on if the ambient light level is sufficient.The sensors can be configured to turn lighting on, and hold it on as long as the sensor detects occupancy. After no movement is detected for a user specified or Autoset time (5s to 30 minutes) the lights are switched off. A “walk-through” mode can turn lights off after only 3 minutes, if no activity is detected after 30 seconds of an occupancy detection.The MPC-50L operates on 24V supplied by MPP-24 Power Packs.

Electrical Specifications
. Voltage: 24VDC
. Current Consumption: 9 mA
. Power Supply: MPP-24 Power Pack

Control Specifications
.Adjustable Light Level:10FC-150FC
. Adjustment Time Delay: 5 sec.-30min (DIP switch)
. Walk-Through Mode:3 minutes if no activity after 30 sec.
. Test Mode:5 sec. upon initial power-up or DIP switch reset

Mechanical Specifications
. PIR Coverage: Up to 1200 ft²
. Sensitivity Adjustment：50% or 100% (DIP switch)

COVERAGE PATTERN

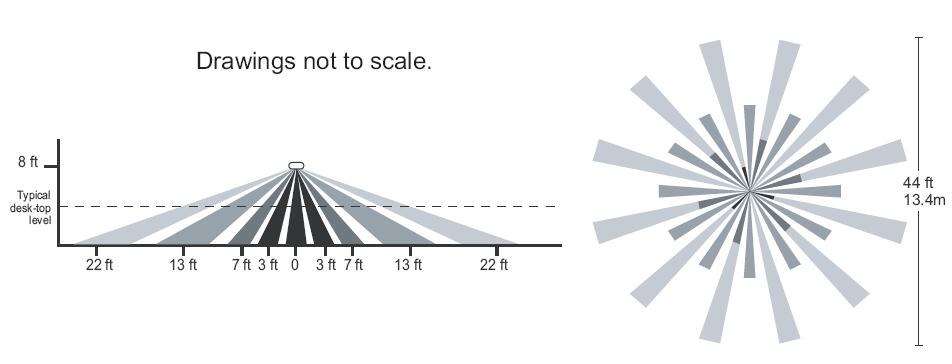

The MPC-50L provides a 360° coverage pattern, up to 1200 square feet. The coverage shown represents walking motion at a mounting height of 8 feet(See Figure 1 ). For building spaces with lower levels of activity or with obstacles and barriers, coverage size may decrease

Environmental Specifications
. Operating Temperature: 32°to 131°F (0°to 55°C)

Standards and Certifications
. UL/CUL Listed
. Code Compliance: California Title 24

Rebates & Incentives USA
There are various rebates and incentives that promote energy efficient lighting systems. Incentives to purchase and install energy efficient products can come from: 1. Local and state utilities 2. State energy efficiency programs 3. EPAct tax incentives 4. Federal stimulus monies that focus on energy efficiency
