Product Description
The MPC-50H occupancy sensor is designed for automatic lighting control in high bay applications,such as warehouses,distribution cen--ters, gymnasiums, and areas with direct access to the lighting fixtures,specifically for indoor locations.This product contains a passive infrared sensor (PIR) .

Electrical Specifications
. Voltage: 120/277VAC, 50/60Hz

Load Requirements:
. 120VAC：0-800W ballast or tungsten
. 277VAC:0-1200W ballast
. 120VAC：1/4 hp

Control Specifications
. Adjustable Light Level:10FC—150FC
. Sensitivity Adjustment：50% or 100% (DIP switch)
. Relative Humidity:20-90%, non-condensing

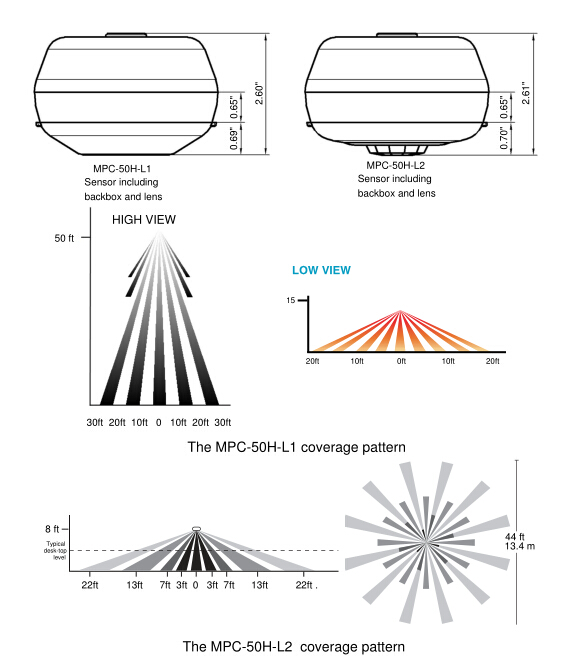

Coverage

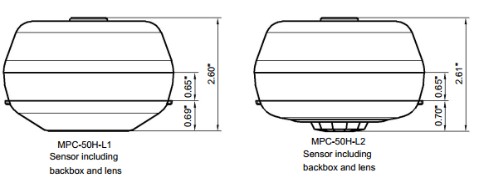

. MPC-50H-L1: Mounting height: 50ft Field of view: 360° Coverage :2800 sq.ft
. MPC-50H-L2: Mounting height: 8ft Field of view: 360° Coverage :1200 sq.ft


Environmental Specifications
. Operating Temperature: 32°to 131°F (0°to 55°C)

Standards and Certifications
. UL/CUL Listed
. Code Compliance: California Title 24

Rebates & Incentives USA
There are various rebates and incentives that promote energy efficient lighting systems. Incentives to purchase and install energy efficient products can come from: 1. Local and state utilities 2. State energy efficiency programs 3. EPAct tax incentives 4. Federal stimulus monies that focus on energy efficiency
