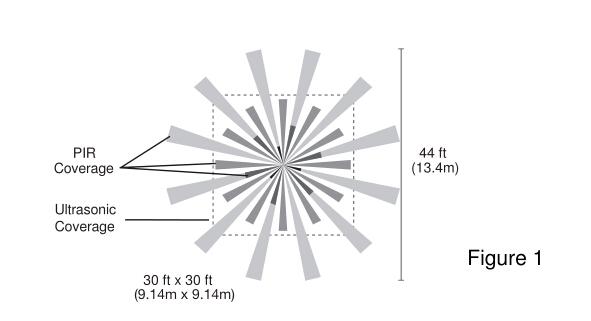

Product Description The MDC-50L 360° Dual-Technology Ceiling Mount Sensor combines advanced passive infrared (PIR) and ultrasonic technologies into one unit. The combined technologies help to avoid false triggering. Selectable operating modes allow the sensor to turn a load on, and hold it on as long as either or both technologies detect occupancy. After no movement is detected for the selected time delay, the lights switch off. The MDC-50L Operated on 24V supplied by MPP-24 Power Packs.Electrical Specifications . Voltage: 24VDC . Current Consumption: 20mA . Power Supply: MPP-24 Power Pack Control Specifications . Adjustment Time Delay: 5 Sec. to 30 Min. . Test Mode: delay time is 5 sec. lasts 30 Min. at each time by setting . PIR Adjustment: 50% or 100% (DIP switch 1) . Ultrasonic Adjustment :Minimum to Maximum (trim pot 1) . Light Level Adjustment: 100 Lux --daylight (trim pot 2) Mechanical Specifications . Pattern Degrees: 360° . PIR Coverage: 1600 sq. ft. . Ultrasonic Coverage: 1000 sq. ft. . Multi- technology PIR and Ultrasonic COVERAGE PATTERN The MDC-50L provides a 360° coverage pattern, up to 1200 square feet. The coverage shown represents walking motion at a mounting height of 8 feet(See Figure 1 ). For building spaces with lower levels of activity or with obstacles and barriers, coverage size may decrease
. Operating Temperature: 32°to 131°F (0°to 55°C) Standards and Certifications . UL/CUL Listed . Code Compliance: California Title 24 |
|
